Project Name: Earlswood STW

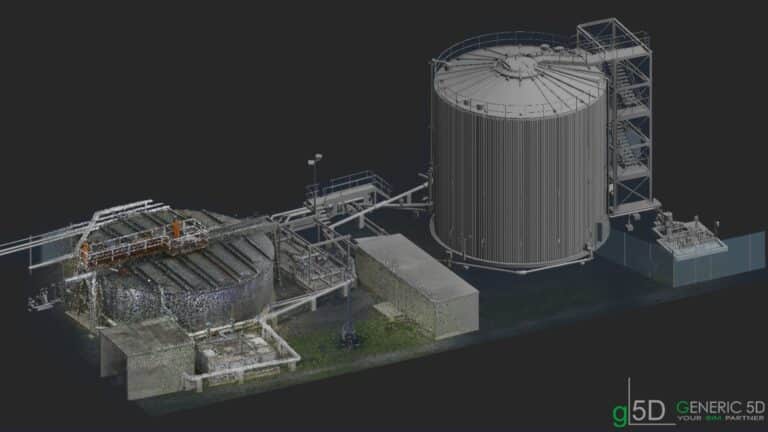

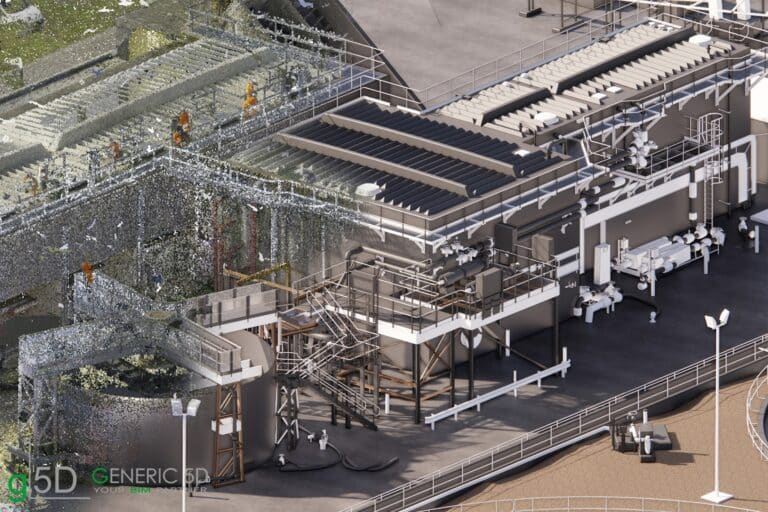

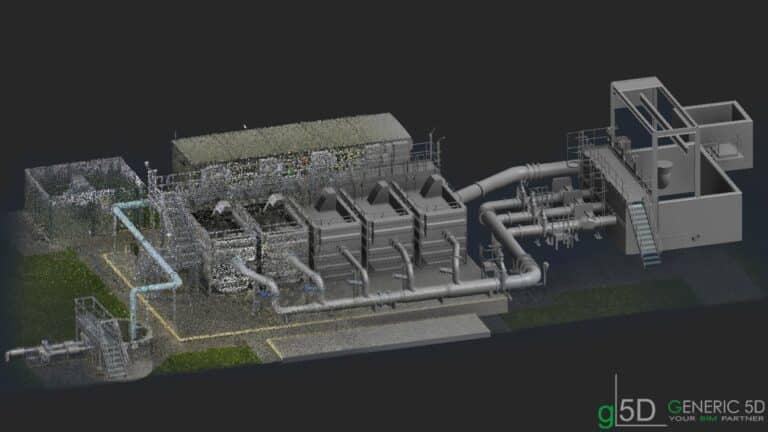

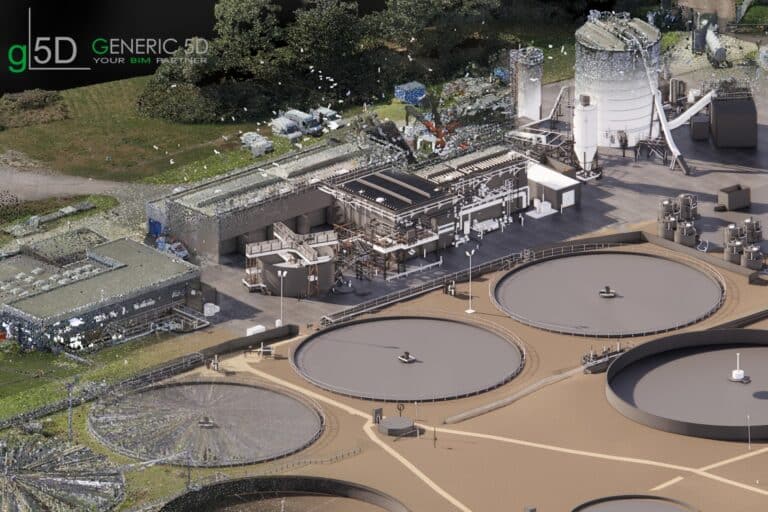

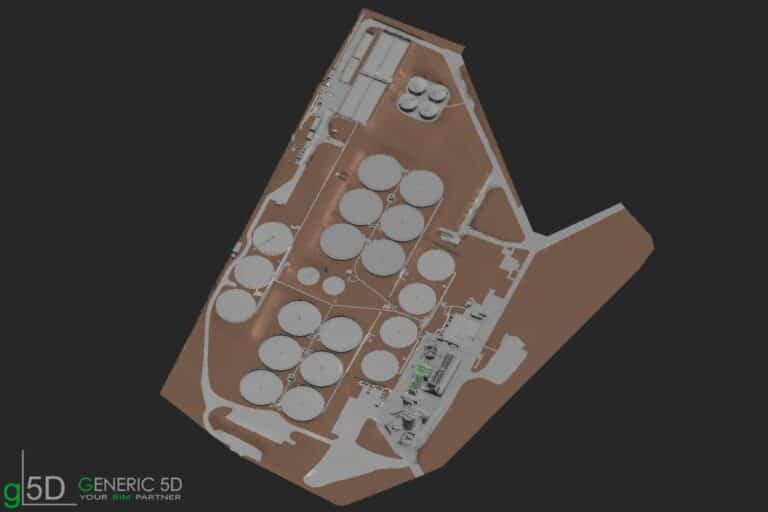

Description: We created a 3D Revit model from a Point Cloud scan of an existing water treatment station in UK. This model captures a high level of detail (LOD 300), accurately representing the station’s essential components and geometry. It includes critical architectural, structural, and mechanical elements, such as treatment tanks, pumps, piping systems, and control rooms. By leveraging the precision of the point cloud scan, this model provides a reliable foundation for further design, analysis, and collaboration efforts within the BIM environment.
Date: September 2023 – December 2023
Service: Point Cloud to BIM
